Eule::Vector4< T > Class Template Reference

Representation of a 4d vector. More...

#include <Vector2.h>

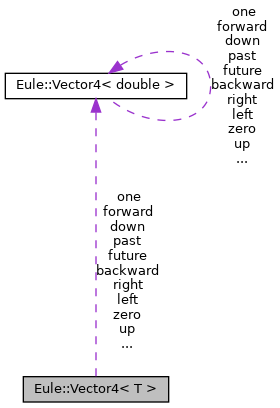

Collaboration diagram for Eule::Vector4< T >:

Public Member Functions
	Vector4 ()
	Vector4 (T _x, T _y, T _z, T _w)
	Vector4 (const Vector4< T > &other)=default
	Vector4 (Vector4< T > &&other) noexcept=default
double	SqrMagnitude () const
	Will compute the square magnitude. More...
double	Magnitude () const
	Will compute the magnitude. More...
Vector4< double >	Normalize () const
	Will return the normalization of this vector. More...
void	NormalizeSelf ()
	Will normalize this vector. More...
Vector4< T >	VectorScale (const Vector4< T > &scalar) const
	Will scale self.n by scalar.n. More...
void	LerpSelf (const Vector4< T > &other, double t)
	Will lerp itself towards other by t. More...
Vector4< double >	Lerp (const Vector4< T > &other, double t) const
	Will return a lerp result between this and another vector. More...
bool	Similar (const Vector4< T > &other, double epsilon=0.00001) const
	Will compare if two vectors are similar to a certain epsilon value. More...
Vector4< int >	ToInt () const
	Will convert this vector to a Vector4i. More...
Vector4< double >	ToDouble () const
	Will convert this vector to a Vector4d. More...
T &	operator[] (std::size_t idx)
const T &	operator[] (std::size_t idx) const
Vector4< T >	operator+ (const Vector4< T > &other) const
void	operator+= (const Vector4< T > &other)
Vector4< T >	operator- (const Vector4< T > &other) const
void	operator-= (const Vector4< T > &other)
Vector4< T >	operator* (const T scale) const
void	operator*= (const T scale)
Vector4< T >	operator/ (const T scale) const
void	operator/= (const T scale)
Vector4< T >	operator* (const Matrix4x4 &mat) const
void	operator*= (const Matrix4x4 &mat)
Vector4< T >	operator- () const
	operator Vector2< T > () const
	operator Vector3< T > () const
	Conversion method. More...
void	operator= (const Vector4< T > &other)
	Conversion method. More...
void	operator= (Vector4< T > &&other) noexcept
bool	operator== (const Vector4< T > &other) const
bool	operator!= (const Vector4< T > &other) const

Public Attributes
T	x
T	y
T	z
T	w

Static Public Attributes
static const Vector4< double >	up
static const Vector4< double >	down
static const Vector4< double >	right
static const Vector4< double >	left
static const Vector4< double >	forward
static const Vector4< double >	backward
static const Vector4< double >	future
static const Vector4< double >	past
static const Vector4< double >	one
static const Vector4< double >	zero

Friends
std::ostream &	operator<< (std::ostream &os, const Vector4< T > &v)
std::wostream &	operator<< (std::wostream &os, const Vector4< T > &v)

Detailed Description

template<typename T>
class Eule::Vector4< T >

Representation of a 4d vector.

Contains a lot of utility methods.

Definition at line 8 of file Vector2.h.

Constructor & Destructor Documentation

Vector4() [1/4]

template<typename T >

Eule::Vector4< T >::Vector4 ( )

inline

Definition at line 20 of file Vector4.h.

: x{ 0 }, y{ 0 }, z{ 0 }, w{ 0 } {}

Vector4() [2/4]

template<typename T >

Eule::Vector4< T >::Vector4 ( T  _x, T  _y, T  _z, T  _w  )

inline

Definition at line 21 of file Vector4.h.

: x{ _x }, y{ _y }, z{ _z }, w{ _w } {}

Vector4() [3/4]

template<typename T >

Eule::Vector4< T >::Vector4 ( const Vector4< T > &  other )

default

Vector4() [4/4]

template<typename T >

Eule::Vector4< T >::Vector4 ( Vector4< T > &&  other )

defaultnoexcept

Member Function Documentation

Lerp()

template<typename T >

Vector4< double > Vector4::Lerp	(	const Vector4< T > &	other,
		double	t
	)		const

Will return a lerp result between this and another vector.

Definition at line 287 of file Vector4.cpp.

{
    Vector4d copy(this->ToDouble());
    copy.LerpSelf(other.ToDouble(), t);

    return copy;
}

LerpSelf()

template<typename T >

void Vector4::LerpSelf	(	const Vector4< T > &	other,
		double	t
	)

Will lerp itself towards other by t.

Definition at line 267 of file Vector4.cpp.

{
    const double it = 1.0 - t;

    x = (int)(it * (double)x + t * (double)other.x);
    y = (int)(it * (double)y + t * (double)other.y);
    z = (int)(it * (double)z + t * (double)other.z);
    w = (int)(it * (double)w + t * (double)other.w);

    return;
}

Magnitude()

template<typename T >

double Vector4::Magnitude

Will compute the magnitude.

Definition at line 38 of file Vector4.cpp.

{
    return sqrt(SqrMagnitude());
}

Normalize()

template<typename T >

Vector4< double > Vector4::Normalize

Will return the normalization of this vector.

Definition at line 92 of file Vector4.cpp.

{
    Vector4<double> norm(x, y, z, w);
    norm.NormalizeSelf();

    return norm;
}

NormalizeSelf()

template<typename T >

void Vector4::NormalizeSelf

(

)

Will normalize this vector.

Definition at line 148 of file Vector4.cpp.

{
    std::cerr << "Stop normalizing int-vectors!!" << std::endl;
    x = 0;
    y = 0;
    z = 0;
    w = 0;

    return;
}

operator Vector2< T >()

template<typename T >

Vector4::operator Vector2< T >

Definition at line 775 of file Vector4.cpp.

{
    return Vector2<T>(x, y);
}

operator Vector3< T >()

template<typename T >

Vector4::operator Vector3< T >

Conversion method.

Definition at line 781 of file Vector4.cpp.

{
    return Vector3<T>(x, y, z);
}

operator!=()

template<typename T >

bool Vector4::operator!=

(

const Vector4< T > &

other

)

const

Definition at line 767 of file Vector4.cpp.

{
    return !operator==(other);
}

operator*() [1/2]

template<typename T >

Vector4< int > Vector4::operator*

(

const Matrix4x4 &

mat

)

const

Definition at line 684 of file Vector4.cpp.

{
    Vector4<double> newVec;

    newVec.x = (mat[0][0] * x) + (mat[0][1] * y) + (mat[0][2] * z) + (mat[0][3] * w);
    newVec.y = (mat[1][0] * x) + (mat[1][1] * y) + (mat[1][2] * z) + (mat[1][3] * w);
    newVec.z = (mat[2][0] * x) + (mat[2][1] * y) + (mat[2][2] * z) + (mat[2][3] * w);
    newVec.w = (mat[3][0] * x) + (mat[3][1] * y) + (mat[3][2] * z) + (mat[3][3] * w);

    return Vector4<int>(
        (int)newVec.x,
        (int)newVec.y,
        (int)newVec.z,
        (int)newVec.w
    );
}

operator*() [2/2]

template<typename T >

Vector4< T > Vector4::operator*

(

const T

scale

)

const

Definition at line 512 of file Vector4.cpp.

{
    return Vector4<T>(
        x * scale,
        y * scale,
        z * scale,
        w * scale
    );
}

operator*=() [1/2]

template<typename T >

void Vector4::operator*=

(

const Matrix4x4 &

mat

)

Definition at line 752 of file Vector4.cpp.

{
    Vector4<double> buffer(x, y, z, w);

    // Should this still be reversed...? like, instead of mat[x][y], use mat[y][m]
    // idk right now. check that if something doesn't work
    x = (int)((mat[0][0] * buffer.x) + (mat[0][1] * buffer.y) + (mat[0][2] * buffer.z) + (mat[0][3] * buffer.w));
    y = (int)((mat[1][0] * buffer.x) + (mat[1][1] * buffer.y) + (mat[1][2] * buffer.z) + (mat[1][3] * buffer.w));
    z = (int)((mat[2][0] * buffer.x) + (mat[2][1] * buffer.y) + (mat[2][2] * buffer.z) + (mat[2][3] * buffer.w));
    w = (int)((mat[3][0] * buffer.x) + (mat[3][1] * buffer.y) + (mat[3][2] * buffer.z) + (mat[3][3] * buffer.w));

    return;
}

operator*=() [2/2]

template<typename T >

void Vector4::operator*=

(

const T

scale

)

Definition at line 557 of file Vector4.cpp.

{
    x *= scale;
    y *= scale;
    z *= scale;
    w *= scale;
    return;
}

operator+()

template<typename T >

Vector4< T > Vector4::operator+

(

const Vector4< T > &

other

)

const

Definition at line 331 of file Vector4.cpp.

{
    return Vector4<T>(
            x + other.x,
            y + other.y,
            z + other.z,
            w + other.w
        );
}

operator+=()

template<typename T >

void Vector4::operator+=

(

const Vector4< T > &

other

)

Definition at line 376 of file Vector4.cpp.

{
    x += other.x;
    y += other.y;
    z += other.z;
    w += other.w;
    return;
}

operator-() [1/2]

template<typename T >

Vector4< T > Vector4::operator-

Definition at line 719 of file Vector4.cpp.

{
    return Vector4<T>(
        -x,
        -y,
        -z,
        -w
    );
}

operator-() [2/2]

template<typename T >

Vector4< T > Vector4::operator-

(

const Vector4< T > &

other

)

const

Definition at line 421 of file Vector4.cpp.

{
    return Vector4<T>(
        x - other.x,
        y - other.y,
        z - other.z,
        w - other.w
    );
}

operator-=()

template<typename T >

void Vector4::operator-=

(

const Vector4< T > &

other

)

Definition at line 466 of file Vector4.cpp.

{
    x -= other.x;
    y -= other.y;
    z -= other.z;
    w -= other.w;
    return;
}

operator/()

template<typename T >

Vector4< T > Vector4::operator/

(

const T

scale

)

const

Definition at line 603 of file Vector4.cpp.

{
    return Vector4<T>(
            x / scale,
            y / scale,
            z / scale,
            w / scale
        );
}

operator/=()

template<typename T >

void Vector4::operator/=

(

const T

scale

)

Definition at line 647 of file Vector4.cpp.

{
    x /= scale;
    y /= scale;
    z /= scale;
    w /= scale;
    return;
}

operator=() [1/2]

template<typename T >

void Vector4::operator=

(

const Vector4< T > &

other

)

Conversion method.

Definition at line 730 of file Vector4.cpp.

{
    x = other.x;
    y = other.y;
    z = other.z;
    w = other.w;

    return;
}

operator=() [2/2]

template<typename T >

void Vector4::operator= ( Vector4< T > &&  other )

noexcept

Definition at line 741 of file Vector4.cpp.

{
    x = std::move(other.x);
    y = std::move(other.y);
    z = std::move(other.z);
    w = std::move(other.w);

    return;
}

operator==()

template<typename T >

bool Vector4::operator==

(

const Vector4< T > &

other

)

const

Definition at line 659 of file Vector4.cpp.

{
    return
        (x == other.x) &&
        (y == other.y) &&
        (z == other.z) &&
        (w == other.w);
}

operator[]() [1/2]

template<typename T >

T & Vector4::operator[]

(

std::size_t

idx

)

Definition at line 185 of file Vector4.cpp.

{
    switch (idx)
    {
    case 0:
        return x;
    case 1:
        return y;
    case 2:
        return z;
    case 3:
        return w;
    default:
        throw std::out_of_range("Array descriptor on Vector4<T> out of range!");
    }
}

operator[]() [2/2]

template<typename T >

const T & Vector4::operator[]

(

std::size_t

idx

)

const

Definition at line 203 of file Vector4.cpp.

{
    switch (idx)
    {
    case 0:
        return x;
    case 1:
        return y;
    case 2:
        return z;
    case 3:
        return w;
    default:
        throw std::out_of_range("Array descriptor on Vector4<T> out of range!");
    }
}

Similar()

template<typename T >

bool Vector4::Similar	(	const Vector4< T > &	other,
		double	epsilon = 0.00001
	)		const

Will compare if two vectors are similar to a certain epsilon value.

Definition at line 162 of file Vector4.cpp.

{
    return
        (::Math::Similar(x, other.x, epsilon)) &&
        (::Math::Similar(y, other.y, epsilon)) &&
        (::Math::Similar(z, other.z, epsilon)) &&
        (::Math::Similar(w, other.w, epsilon))
    ;
}

SqrMagnitude()

template<typename T >

double Vector4::SqrMagnitude

(

)

const

Will compute the square magnitude.

Definition at line 31 of file Vector4.cpp.

{
    int iSqrMag = x*x + y*y + z*z + w*w;
    return (double)iSqrMag;
}

ToDouble()

template<typename T >

Vector4< double > Vector4::ToDouble

Will convert this vector to a Vector4d.

Definition at line 179 of file Vector4.cpp.

{
    return Vector4<double>((double)x, (double)y, (double)z, (double)w);
}

ToInt()

template<typename T >

Vector4< int > Vector4::ToInt

Will convert this vector to a Vector4i.

Definition at line 173 of file Vector4.cpp.

{
    return Vector4<int>((int)x, (int)y, (int)z, (int)w);
}

VectorScale()

template<typename T >

Vector4< int > Vector4::VectorScale

(

const Vector4< T > &

scalar

)

const

Will scale self.n by scalar.n.

Definition at line 79 of file Vector4.cpp.

{
    return Vector4<int>(
            x * scalar.x,
            y * scalar.y,
            z * scalar.z,
            w * scalar.w
        );
}

Friends And Related Function Documentation

operator<< [1/2]

template<typename T >

std::ostream& operator<< ( std::ostream &  os, const Vector4< T > &  v  )

friend

Definition at line 79 of file Vector4.h.

        {
            return os << "[x: " << v.x << "  y: " << v.y << "  z: " << v.z << "  w: " << v.w << "]";
        }

operator<< [2/2]

template<typename T >

std::wostream& operator<< ( std::wostream &  os, const Vector4< T > &  v  )

friend

Definition at line 83 of file Vector4.h.

        {
            return os << L"[x: " << v.x << L"  y: " << v.y << L"  z: " << v.z << L"  w: " << v.w << L"]";
        }

Member Data Documentation

backward

template<typename T >

const Vector4< double > Vector4::backward

static

Definition at line 99 of file Vector4.h.

down

template<typename T >

const Vector4< double > Vector4::down

static

Definition at line 95 of file Vector4.h.

forward

template<typename T >

const Vector4< double > Vector4::forward

static

Definition at line 98 of file Vector4.h.

future

template<typename T >

const Vector4< double > Vector4::future

static

Definition at line 100 of file Vector4.h.

left

template<typename T >

const Vector4< double > Vector4::left

static

Definition at line 97 of file Vector4.h.

one

template<typename T >

const Vector4< double > Vector4::one

static

Definition at line 102 of file Vector4.h.

past

template<typename T >

const Vector4< double > Vector4::past

static

Definition at line 101 of file Vector4.h.

right

template<typename T >

const Vector4< double > Vector4::right

static

Definition at line 96 of file Vector4.h.

up

template<typename T >

const Vector4< double > Vector4::up

static

Definition at line 94 of file Vector4.h.

w

template<typename T >

T Eule::Vector4< T >::w

Definition at line 91 of file Vector4.h.

x

template<typename T >

T Eule::Vector4< T >::x

Definition at line 88 of file Vector4.h.

y

template<typename T >

T Eule::Vector4< T >::y

Definition at line 89 of file Vector4.h.

z

template<typename T >

T Eule::Vector4< T >::z

Definition at line 90 of file Vector4.h.

zero

template<typename T >

const Vector4< double > Vector4::zero

static

Definition at line 103 of file Vector4.h.

---

The documentation for this class was generated from the following files:

• Eule/Vector2.h
• Eule/Vector4.h
• Eule/Vector4.cpp
