Eule::Vector3< T > Class Template Reference

Representation of a 3d vector. More...

#include <Matrix4x4.h>

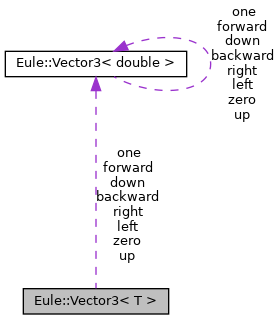

Collaboration diagram for Eule::Vector3< T >:

Public Member Functions
	Vector3 ()
	Vector3 (T _x, T _y, T _z)
	Vector3 (const Vector3< T > &other)=default
	Vector3 (Vector3< T > &&other) noexcept=default
double	DotProduct (const Vector3< T > &other) const
	Will compute the dot product to another Vector3. More...
Vector3< double >	CrossProduct (const Vector3< T > &other) const
	Will compute the cross product to another Vector3. More...
double	SqrMagnitude () const
	Will compute the square magnitude. More...
double	Magnitude () const
	Will compute the magnitude. More...
Vector3< double >	Normalize () const
	Will return the normalization of this vector. More...
void	NormalizeSelf ()
	Will normalize this vector. More...
Vector3< T >	VectorScale (const Vector3< T > &scalar) const
	Will scale self.n by scalar.n. More...
void	LerpSelf (const Vector3< T > &other, double t)
	Will lerp itself towards other by t. More...
Vector3< double >	Lerp (const Vector3< T > &other, double t) const
	Will return a lerp result between this and another vector. More...
bool	Similar (const Vector3< T > &other, double epsilon=0.00001) const
	Will compare if two vectors are similar to a certain epsilon value. More...
Vector3< int >	ToInt () const
	Will convert this vector to a Vector3i. More...
Vector3< double >	ToDouble () const
	Will convert this vector to a Vector3d. More...
T &	operator[] (std::size_t idx)
const T &	operator[] (std::size_t idx) const
Vector3< T >	operator+ (const Vector3< T > &other) const
void	operator+= (const Vector3< T > &other)
Vector3< T >	operator- (const Vector3< T > &other) const
void	operator-= (const Vector3< T > &other)
Vector3< T >	operator* (const T scale) const
void	operator*= (const T scale)
Vector3< T >	operator/ (const T scale) const
void	operator/= (const T scale)
Vector3< T >	operator* (const Matrix4x4 &mat) const
void	operator*= (const Matrix4x4 &mat)
Vector3< T >	operator- () const
	operator Vector2< T > () const
	operator Vector4< T > () const
	Conversion method. More...
void	operator= (const Vector3< T > &other)
	Conversion method. More...
void	operator= (Vector3< T > &&other) noexcept
bool	operator== (const Vector3< T > &other) const
bool	operator!= (const Vector3< T > &other) const

Public Attributes
T	x
T	y
T	z

Static Public Attributes
static const Vector3< double >	up
static const Vector3< double >	down
static const Vector3< double >	right
static const Vector3< double >	left
static const Vector3< double >	forward
static const Vector3< double >	backward
static const Vector3< double >	one
static const Vector3< double >	zero

Friends
std::ostream &	operator<< (std::ostream &os, const Vector3< T > &v)
std::wostream &	operator<< (std::wostream &os, const Vector3< T > &v)

Detailed Description

template<typename T>
class Eule::Vector3< T >

Representation of a 3d vector.

Contains a lot of utility methods.

Definition at line 9 of file Matrix4x4.h.

Constructor & Destructor Documentation

Vector3() [1/4]

template<typename T >

Eule::Vector3< T >::Vector3 ( )

inline

Definition at line 20 of file Vector3.h.

: x{ 0 }, y{ 0 }, z{ 0 } {}

Vector3() [2/4]

template<typename T >

Eule::Vector3< T >::Vector3 ( T  _x, T  _y, T  _z  )

inline

Definition at line 21 of file Vector3.h.

: x{ _x }, y{ _y }, z{ _z } {}

Vector3() [3/4]

template<typename T >

Eule::Vector3< T >::Vector3 ( const Vector3< T > &  other )

default

Vector3() [4/4]

template<typename T >

Eule::Vector3< T >::Vector3 ( Vector3< T > &&  other )

defaultnoexcept

Member Function Documentation

CrossProduct()

template<typename T >

Vector3< double > Vector3::CrossProduct

(

const Vector3< T > &

other

)

const

Will compute the cross product to another Vector3.

Definition at line 68 of file Vector3.cpp.

{
    Vector3<double> cp;
    cp.x = ((double)y * (double)other.z) - ((double)z * (double)other.y);
    cp.y = ((double)z * (double)other.x) - ((double)x * (double)other.z);
    cp.z = ((double)x * (double)other.y) - ((double)y * (double)other.x);

    return cp;
}

DotProduct()

template<typename T >

double Vector3::DotProduct

(

const Vector3< T > &

other

)

const

Will compute the dot product to another Vector3.

Definition at line 48 of file Vector3.cpp.

{
    int iDot = (x * other.x) + (y * other.y) + (z * other.z);
    return (double)iDot;
}

Lerp()

template<typename T >

Vector3< double > Vector3::Lerp	(	const Vector3< T > &	other,
		double	t
	)		const

Will return a lerp result between this and another vector.

Definition at line 330 of file Vector3.cpp.

{
    Vector3d copy(this->ToDouble());
    copy.LerpSelf(other.ToDouble(), t);

    return copy;
}

LerpSelf()

template<typename T >

void Vector3::LerpSelf	(	const Vector3< T > &	other,
		double	t
	)

Will lerp itself towards other by t.

Definition at line 311 of file Vector3.cpp.

{
    const double it = 1.0 - t; // Inverse t

    x = (int)(it * (double)x + t * (double)other.x);
    y = (int)(it * (double)y + t * (double)other.y);
    z = (int)(it * (double)z + t * (double)other.z);

    return;
}

Magnitude()

template<typename T >

double Vector3::Magnitude

Will compute the magnitude.

Definition at line 95 of file Vector3.cpp.

{
    return sqrt(SqrMagnitude());
}

Normalize()

template<typename T >

Vector3< double > Vector3::Normalize

Will return the normalization of this vector.

Definition at line 147 of file Vector3.cpp.

{
    Vector3<double> norm(x, y, z);
    norm.NormalizeSelf();

    return norm;
}

NormalizeSelf()

template<typename T >

void Vector3::NormalizeSelf

(

)

Will normalize this vector.

Definition at line 200 of file Vector3.cpp.

{
    std::cerr << "Stop normalizing int-vectors!!" << std::endl;
    x = 0;
    y = 0;
    z = 0;

    return;
}

operator Vector2< T >()

template<typename T >

Vector3::operator Vector2< T >

Definition at line 873 of file Vector3.cpp.

{
    return Vector2<T>(x, y);
}

operator Vector4< T >()

template<typename T >

Vector3::operator Vector4< T >

Conversion method.

Definition at line 879 of file Vector3.cpp.

{
    return Vector4<T>(x, y, z, 0);
}

operator!=()

template<typename T >

bool Vector3::operator!=

(

const Vector3< T > &

other

)

const

Definition at line 864 of file Vector3.cpp.

{
    return !operator==(other);
}

operator*() [1/2]

template<typename T >

Vector3< int > Vector3::operator*

(

const Matrix4x4 &

mat

)

const

Definition at line 731 of file Vector3.cpp.

{
    Vector3<double> newVec;

    // Rotation, Scaling
    newVec.x = ((mat[0][0] * x) + (mat[1][0] * y) + (mat[2][0] * z));
    newVec.y = ((mat[0][1] * x) + (mat[1][1] * y) + (mat[2][1] * z));
    newVec.z = ((mat[0][2] * x) + (mat[1][2] * y) + (mat[2][2] * z));

    // Translation
    newVec.x += mat[0][3];
    newVec.y += mat[1][3];
    newVec.z += mat[2][3];

    return Vector3<int>(
        (int)newVec.x,
        (int)newVec.y,
        (int)newVec.z
    );
}

operator*() [2/2]

template<typename T >

Vector3< T > Vector3::operator*

(

const T

scale

)

const

Definition at line 541 of file Vector3.cpp.

{
    return Vector3<T>(
        x * scale,
        y * scale,
        z * scale
    );
}

operator*=() [1/2]

template<typename T >

void Vector3::operator*=

(

const Matrix4x4 &

mat

)

Definition at line 836 of file Vector3.cpp.

{
    Vector3<double> buffer(x, y, z);

    x = (int)((mat[0][0] * buffer.x) + (mat[0][1] * buffer.y) + (mat[0][2] * buffer.z));
    y = (int)((mat[1][0] * buffer.x) + (mat[1][1] * buffer.y) + (mat[1][2] * buffer.z));
    z = (int)((mat[2][0] * buffer.x) + (mat[2][1] * buffer.y) + (mat[2][2] * buffer.z));

    // Translation
    x += (int)mat[0][3];
    y += (int)mat[1][3];
    z += (int)mat[2][3];

    return;
}

operator*=() [2/2]

template<typename T >

void Vector3::operator*=

(

const T

scale

)

Definition at line 583 of file Vector3.cpp.

{
    x *= scale;
    y *= scale;
    z *= scale;
    return;
}

operator+()

template<typename T >

Vector3< T > Vector3::operator+

(

const Vector3< T > &

other

)

const

Definition at line 372 of file Vector3.cpp.

{
    return Vector3<T>(
            x + other.x,
            y + other.y,
            z + other.z
        );
}

operator+=()

template<typename T >

void Vector3::operator+=

(

const Vector3< T > &

other

)

Definition at line 414 of file Vector3.cpp.

{
    x += other.x;
    y += other.y;
    z += other.z;
    return;
}

operator-() [1/2]

template<typename T >

Vector3< T > Vector3::operator-

Definition at line 806 of file Vector3.cpp.

{
    return Vector3<T>(
        -x,
        -y,
        -z
    );
}

operator-() [2/2]

template<typename T >

Vector3< T > Vector3::operator-

(

const Vector3< T > &

other

)

const

Definition at line 456 of file Vector3.cpp.

{
    return Vector3<T>(
        x - other.x,
        y - other.y,
        z - other.z
    );
}

operator-=()

template<typename T >

void Vector3::operator-=

(

const Vector3< T > &

other

)

Definition at line 498 of file Vector3.cpp.

{
    x -= other.x;
    y -= other.y;
    z -= other.z;
    return;
}

operator/()

template<typename T >

Vector3< T > Vector3::operator/

(

const T

scale

)

const

Definition at line 626 of file Vector3.cpp.

{
    return Vector3<T>(
            x / scale,
            y / scale,
            z / scale
        );
}

operator/=()

template<typename T >

void Vector3::operator/=

(

const T

scale

)

Definition at line 667 of file Vector3.cpp.

{
    x /= scale;
    y /= scale;
    z /= scale;
    return;
}

operator=() [1/2]

template<typename T >

void Vector3::operator=

(

const Vector3< T > &

other

)

Conversion method.

Definition at line 816 of file Vector3.cpp.

{
    x = other.x;
    y = other.y;
    z = other.z;

    return;
}

operator=() [2/2]

template<typename T >

void Vector3::operator= ( Vector3< T > &&  other )

noexcept

Definition at line 826 of file Vector3.cpp.

{
    x = std::move(other.x);
    y = std::move(other.y);
    z = std::move(other.z);

    return;
}

operator==()

template<typename T >

bool Vector3::operator==

(

const Vector3< T > &

other

)

const

Definition at line 855 of file Vector3.cpp.

{
    return
        (x == other.x) &&
        (y == other.y) &&
        (z == other.z);
}

operator[]() [1/2]

template<typename T >

T & Vector3::operator[]

(

std::size_t

idx

)

Definition at line 235 of file Vector3.cpp.

{
    switch (idx)
    {
    case 0:
        return x;
    case 1:
        return y;
    case 2:
        return z;
    default:
        throw std::out_of_range("Array descriptor on Vector3<T> out of range!");
    }
}

operator[]() [2/2]

template<typename T >

const T & Vector3::operator[]

(

std::size_t

idx

)

const

Definition at line 251 of file Vector3.cpp.

{
    switch (idx)
    {
    case 0:
        return x;
    case 1:
        return y;
    case 2:
        return z;
    default:
        throw std::out_of_range("Array descriptor on Vector3<T> out of range!");
    }
}

Similar()

template<typename T >

bool Vector3::Similar	(	const Vector3< T > &	other,
		double	epsilon = 0.00001
	)		const

Will compare if two vectors are similar to a certain epsilon value.

Definition at line 213 of file Vector3.cpp.

{
    return
        (::Math::Similar(x, other.x, epsilon)) &&
        (::Math::Similar(y, other.y, epsilon)) &&
        (::Math::Similar(z, other.z, epsilon))
    ;
}

SqrMagnitude()

template<typename T >

double Vector3::SqrMagnitude

(

)

const

Will compute the square magnitude.

Definition at line 88 of file Vector3.cpp.

{
    int iSqrMag = x*x + y*y + z*z;
    return (double)iSqrMag;
}

ToDouble()

template<typename T >

Vector3< double > Vector3::ToDouble

Will convert this vector to a Vector3d.

Definition at line 229 of file Vector3.cpp.

{
    return Vector3<double>((double)x, (double)y, (double)z);
}

ToInt()

template<typename T >

Vector3< int > Vector3::ToInt

Will convert this vector to a Vector3i.

Definition at line 223 of file Vector3.cpp.

{
    return Vector3<int>((int)x, (int)y, (int)z);
}

VectorScale()

template<typename T >

Vector3< int > Vector3::VectorScale

(

const Vector3< T > &

scalar

)

const

Will scale self.n by scalar.n.

Definition at line 135 of file Vector3.cpp.

{
    return Vector3<int>(
            x * scalar.x,
            y * scalar.y,
            z * scalar.z
    );
}

Friends And Related Function Documentation

operator<< [1/2]

template<typename T >

std::ostream& operator<< ( std::ostream &  os, const Vector3< T > &  v  )

friend

Definition at line 85 of file Vector3.h.

        {
            return os << "[x: " << v.x << "  y: " << v.y << "  z: " << v.z << "]";
        }

operator<< [2/2]

template<typename T >

std::wostream& operator<< ( std::wostream &  os, const Vector3< T > &  v  )

friend

Definition at line 89 of file Vector3.h.

        {
            return os << L"[x: " << v.x << L"  y: " << v.y << L"  z: " << v.z << L"]";
        }

Member Data Documentation

backward

template<typename T >

const Vector3< double > Vector3::backward

static

Definition at line 104 of file Vector3.h.

down

template<typename T >

const Vector3< double > Vector3::down

static

Definition at line 100 of file Vector3.h.

forward

template<typename T >

const Vector3< double > Vector3::forward

static

Definition at line 103 of file Vector3.h.

left

template<typename T >

const Vector3< double > Vector3::left

static

Definition at line 102 of file Vector3.h.

one

template<typename T >

const Vector3< double > Vector3::one

static

Definition at line 105 of file Vector3.h.

right

template<typename T >

const Vector3< double > Vector3::right

static

Definition at line 101 of file Vector3.h.

up

template<typename T >

const Vector3< double > Vector3::up

static

Definition at line 99 of file Vector3.h.

x

template<typename T >

T Eule::Vector3< T >::x

Definition at line 94 of file Vector3.h.

y

template<typename T >

T Eule::Vector3< T >::y

Definition at line 95 of file Vector3.h.

z

template<typename T >

T Eule::Vector3< T >::z

Definition at line 96 of file Vector3.h.

zero

template<typename T >

const Vector3< double > Vector3::zero

static

Definition at line 106 of file Vector3.h.

---

The documentation for this class was generated from the following files:

• Eule/Matrix4x4.h
• Eule/Vector3.h
• Eule/Vector3.cpp
